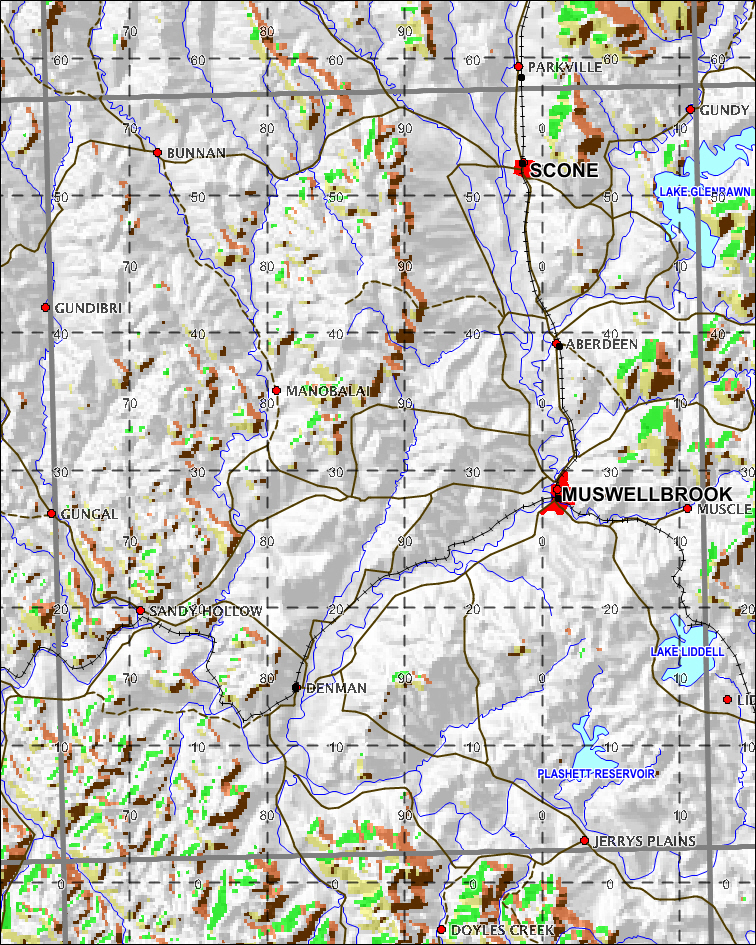

Look for a large area of uniform colour - its colour gives the wind direction that might cause a fire channelling event.
NOTES:
This map reflects work in:
Sharples, J.J., McRae, R.H.D. & Wilkes, S.R. (2012) Wind-terrain
effects on the propagation of wildfires in rugged terrain: fire channelling. International Journal of Wildland Fire, doi:10.1071/WF10055. A draft of this is available here.
It is important to understand this before using this product operationally. Fundamentally if a spreading wildfire enters a local channelling event, it can spread in two directions at once and escalate violently, endangering fire crews.
This map is based on a standard 1:100,000 scale map tile (ref: Geoscience Australia), outlines in grey. Grid north is to the tiop of the page. Note your local variations for true and magnetic north before using those.
The limited annotation data are from GA's 1:1,000,000 scale products.
This map shows a 10km map grid, on MGA94 Zone 55 or zone 56 in the east.
To save the map, wrong-click on it and select 'Save picture as...' or the equivalent option, depending on your browser.
