Click for home pageEvent (17) Cloud in convection column forms an anvil.

Air Observer or Field Observer

Photos: McRae. View of Billo Road Fire, 15:30 AEDST 11 December 2006. 149.07° -35.32° looking W.
The upper photo shows an anvil (incus) forming in a smoke plume, seen from a distance of 80km. The lower photo shows detail of mammatus forming on the underside of the anvil.

Situation Unit Officer

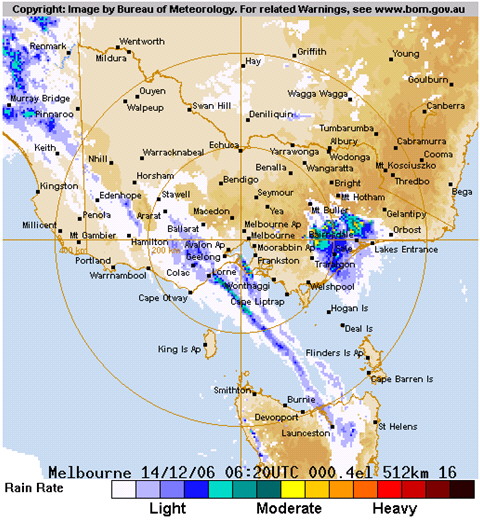

BoM Melbourne Weather Watch Radar image from 5:20pm AEDST 14 December 2006.
This image shows a major event underway. A large wildfire complex is burning in the Victorian high country, and a cold front is approaching from the west, as shown by the NW-SE oriented cloud band. Three anvils are seen in the radar, to the NE of Traralgon.

Implications

Phenomenon Urgency Indicated Red Flag Warning
Violent Pyro-convection 1 1) Plume-Driven Fire

Browsing the Event List

Previous event page Event List Next event page


This material arises from work carried out by the HighFire Risk Project.
Material prepared by R. McRae September 2009.
