Event (26) Sudden non-diurnal fall in DP mid-afternoon.

Field Observer or Situation Unit Officer

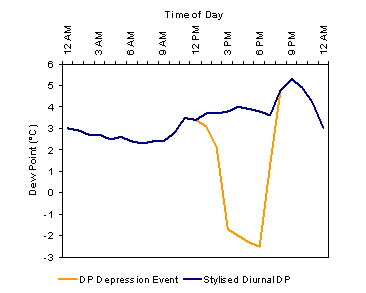

The graph above shows a stylised DP depression event, and compares a typical diurnal trace with that of a typical event.

Data: BoM

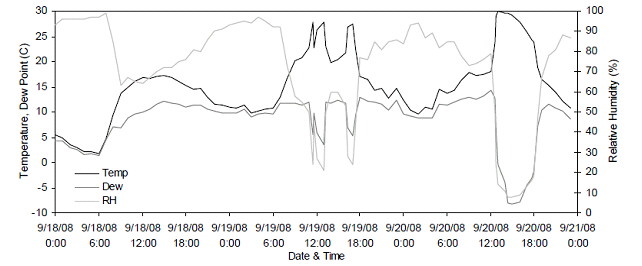

The graph above shows a temperature, relative humidity and dew point time series for Moruya, 18th September – 21st September 2008. By reference to the event of the far right, note how the temperature rises, the dew point falls and the relative humidity falls in a synchronsied fashion.
Detection of such events relies on access to AWS data or to data from hand-held instruments.

Implications

Phenomenon	Urgency	Indicated Red Flag Warning
Abrupt Surface Drying	2	3) Passage of dry Slot over fire
Abrupt Surface Drying	2	7) Dew Point Depression Event

Browsing the Event List

Previous event page

Event List

Next event page

This material arises from work carried out by the HighFire Risk Project.

Material prepared by R. McRae September 2009.
